What’s In The Box?
Wand in cardboard sheathing
Extended warranty card
What Are The Parts Of The HD2000 Battery-Powered Backpack Sprayer?
The HD2000, like its bigger cousins, features a wide-mouth lid for easy filling, emptying, and cleaning. You can safely & easily pour solutions in without worrying about spills.
Removable mesh strainer
All our backpack models feature a removable plastic mesh strainer inside the wide-mouth opening. This is great for trapping bugs, leaves, and other debris BEFORE it makes its way into the tank.
The HD2000 features the most comfortable, thick-padded backpack straps we sell! Combined with its padded back pad, you’re toughest spray job won’t take its toll on your back & shoulders.
With its 2-gallon capacity, the HD2000 features translucent plastic construction for easy cleaning and lightweight portability.
Adjust the pressure to match your job with the pressure adjustment knob. Big enough to use with gloved hands, it lets you dial in just the right spray. Next to the knob is the battery charger port.
The lightweight ultra-life battery powers the HD2000 for up to 4 hours of spray time. Easily rechargeable and replaceable, the maintenance-free battery will last for years of use & includes a charger.
What Is Included In The Accessories Bag?
Our large grip valve handle has a simple red locking mechanism to prevent hand cramps.
We include 5 unique nozzles, allowing you to perform everything from close up misting to 20 foot spraying.
Use the included tape to prevent drips where parts thread on, like the valve handle & nozzles.
Plug it in and forget it. Our 110v charger plugs in to any standard US outlet and delivers a full charge quickly.
Set of Gaskets & O-Rings
We include a full set of spares to ensure your HD2000 is drip-free for years to come.
What are the Included Nozzles and Their Uses?
Every HD2000 comes with six versatile nozzles to help you tackle your toughest spraying jobs. You can purchase additional nozzles at our website. Here’s what each of your new HD2000 nozzles can do:
Orange Cone Nozzle
can reach 8-10 feet with a soaking shower. You can also adjust it for a finer mist.
Double Misting Nozzle
lets you cover a large area with a medium-fine mist. Perfect for watering young or delicate plants.
Single Misting Nozzle
has a very fine mist, perfect for flower beds or indoor greenhouse plants.
Yellow Flat Tip Nozzle
this delivers a nice, even, and wide fan of liquid which is perfect for green grass paint or mulch paint. If precise application of a solution is required, this nozzle is your best choice.
this nozzle is like a garden hose, which you can adjust for a strong jet of liquid (over 20 feet).
Black Single Nozzle
Works just like the brass nozzle but is better for caustic solutions. Perfect for a variety of applications, from fine mist up to a straight stream, with a twist of the nozzle.
How To Assemble The HD2000 Battery-Powered Backpack Sprayer
Like most of our sprayers, the ‘heavy lifting’ has been done at the factory or our warehouse for you. But there are a few quick steps that’ll have you up & running in just a few minutes.
Thread the Valve Handle onto the Hose
The hose coming from the tank has a female threaded adapter, and the valve handle has male threads on the end opposite the red trigger lock. Wrap this join with plumber’s tape and thread together. Do not overtighten.

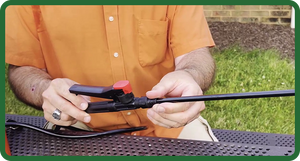

Thread the Wand onto the Valve Handle
The wand, found in its own cardboard sheath, threads onto the other end of the valve handle. After wrapping this join with plumber’s tape, screw the wand down but do not overtighten.
Select the Nozzle You’ll be Using
Select the nozzle you’d like to try first, ensure that the green rubber o-ring is in place on the end of the wand, wrap the join with plumber’s tape, and thread the nozzle down.
How To Use The HD2000 Battery-Powered Backpack Sprayer
Your new HD2000 is built for ease of use, but if you need a hand, check out these quick-start instructions.
Charge Before Use
We recommend fully charging your HD2000 before using it on your first job. Plug the included charger into the port on the control panel, and then plug it into a standard 110v outlet. Your unit should be ready for use in 2-3 hours.
Prime the Sprayer Pump
Your unit will run better if primed before the first use. Pour 2 gallons of warm tap water into the tank. Add 2 tsp liquid dish soap. Spray all water through the unit. Depending on pressure dial, this should only take a few minutes.
Add Liquid of Your Choice
The HD2000 works great for spraying all kinds of liquids, but do not spray anything thicker than skim milk or anything flammable . Add liquid through the mesh strainer in the lid to prevent foreign material entering the tank.
Dial In the Pressure
Using the pressure knob on the bottom/side of the tank, turn clockwise. Pump will build pressure and then stop/start as needed.
Squeeze the Valve Handle
Apply pressure with your hand to the trigger on the valve handle, or alternatively, press it down & engage the red locking mechanism for constant uninterrupted flow.
Ensure that the pressure adjustment knob is turned off when you’re finished.
How To Prime The HD2000 Battery-Powered Backpack Sprayer
All of our units are tested with tap water at the factory or our warehouse, but it’s possible that your pump may have dried out during shipping. To minimize the effects of this, we recommend priming the pump thoroughly before the first use.
Add 2 gallons of warm soapy water into the tank.
Make sure that you use warm water and that you are adding the right amount of soap. Ideally, you should add around 2-3 scoops of liquid soap.
Close the lid and turn on the unit
Make sure that you have tightly closed the lid. Depending on what's causing the issue, you could have flow coming out of your hose within a few seconds to a few minutes.
How To Troubleshoot The HD2000 Battery-Powered Backpack Sprayer
Most calls to our customer service line in Carlisle, PA are easy to resolve and involve these issues and fixes.
Check Your Knob
Ensure that the pressure control knob is turned clockwise. The pump may be heard running as you increase pressure, but it may not make sound as it’s already built up enough pressure.
Check Your Voltmeter
During normal operation, the green AND red lights of the voltmeter should stay on. If there are no lights and the unit is turned on, your battery may be discharged.
Check Your Pump
emember, the HD2000 uses a demand-style pump. This means it does not always run and make sound while the unit is on. It is possible to leave the unit on inadvertently and run the battery down. Priming also solves many pump issues.
Check Your Tank
If other troubleshooting steps fail, ensure there is liquid in the tank & the lid, and its sealing black gasket, is firmly screwed on.
Check Your Battery
Plug the charger firmly into the battery charger port on the base of the unit, then plug into a 110v outlet. Your battery will last many years but may need to be replaced eventually.
How To Assemble and Fix Wand That Separates
Here’s how you can assemble and fix wand that separates:
Slide the little end of the black wand tip into the wand's inner tube. Using plumbers tape to secure the connection is recommended.
Replace the little black rubber O ring in the groove at the tip of the wand; two O rings may provide additional stability (find an extra O ring your accessories bag).
Place the orange adapter on the tip of the O ring and slide the black piece to meet it, tightening the screws as much as possible.
At the tip of the finished wand, place the nozzle of your choice onto the plastic reducer.
Preparing Your HD2000 For Winter Storage
A few simple steps will ensure that your unit will be ready for use when spring finally arrives.
Run 2 gallons of warm water mixed with 2 teaspoons of liquid dish soap through the unit to clean all internal parts, then run 1 more gallon of warm water only through. Spray until unit, wand & hose are fully empty.
You may plug your HD2000 unit in for constant battery maintenance, or if this is not possible, simply charge fully before storage..
Place unit right-side-up in the warmest storage possible. Do not store long-term in temps below 32°F.
Storage in its original closed box is ideal, but if that’s not an option, you can cover with a canvas or plastic tarp to protect it.
How to Remove & Replace the Battery on Your HD2000
The lead acid battery found in your HD2000 uses reliable, time-tested technology that will last for many years of safe use. If you notice your battery begin to lose charge, or only hold enough for short spray jobs, it’s time to replace it. You can purchase brand new batteries from the PetraTools website. Here are the steps required to remove & replace the old battery.
Make sure the pressure gauge is turned counterclockwise to the OFF position, and that the battery charger is not plugged into the unit.
On the back of the unit, at the bottom, there’s a small battery compartment door under the back pad. Press the button to open this door.
There will be a red wire & a black wire attached to the battery. You can either remove the wires at the terminal, or cut the wire close to the terminal with wire cutters. Make note of which wire was attached to the + and – terminals.
Slide the old battery out. Please recycle!
Place the new battery with the terminals oriented the same way as the old battery. Reattach the red & black wires as they were on the old battery.
Slide the new battery back in to the battery compartment & close the black plastic door until the button clicks.
Disassembly, Pump Replacement, & Reassembly of the HD2000
The pump in your HD2000 is easily replaceable by following these simple steps. As with all replacement parts, our warehouse in Carlisle PA has plenty in stock. Give them a call at 1-800-613-6889 or go to our website, www.petratools.com
Make sure the pressure gauge is turned counterclockwise to the OFF position, and that the battery charger is not plugged into the unit. Empty any liquid from the tank.
Turn the unit upside down. There are two Phillips screws recessed into holes in the bottom. Unscrew both of these & place in a safe place.
Remove the bottom orange or black plastic piece from the unit by lifting it up & away from the tank.
Remove the screws that hold the pump into the unit. Put them in a safe place once removed. You will need to re-use them.
Next you will need to remove the hoses by squeezing the hose clamps to release pressure. Pull the hoses off of the pump.
Remove the two wires that provide power to the pump, a + wire and a – wire. Remember where these wires were connected for reassembly.Lift the old pump out.
Reattach the two wires exactly as they were before. You may need to strip ½” of the plastic insulation from the ends of the wires to make this easier.
Reconnect the hoses by opening the hose clamps and sliding them back into place.
Replace the screws holding the pump in place from step #4.
Carefully work the bottom of the unit back into place under the tank. Ensure that the screw holes are lined up. Replace the screws from step #2.
FREQUENTLY ASKED QUESTIONS
The HD2000 backpack sprayer can be used to apply pesticides, herbicides, and fertilizers. It is also capable of spraying water and other liquids.
No, the HD2000 backpack sprayer is easy to operate. Simply attach the desired accessory to the spray wand and pump the handle to start spraying.
The HD2000 backpack sprayer uses a 12-volt battery.
The battery on the HD2000 backpack sprayer lasts for approximately six hours of spraying time.
The HD2000 backpack sprayer comes with an initial 90-day warranty and 90-day extended warranty when registered. This ensures that if there are any problems with the HD2000, you will be covered. Additionally, the customer service hotline is available to help with any questions or concerns you may have.
