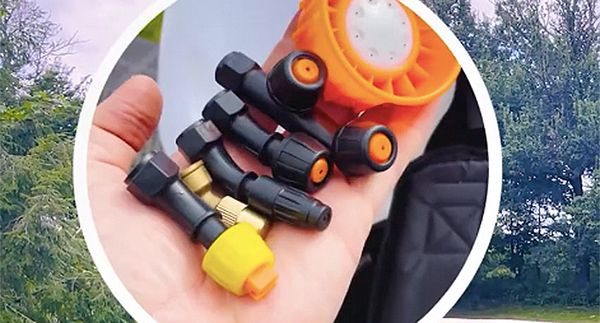

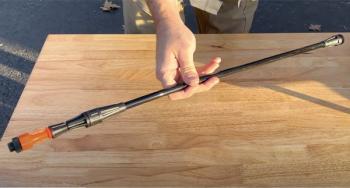

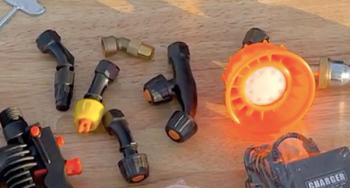

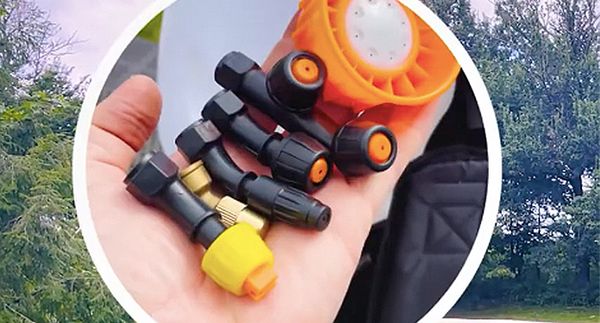

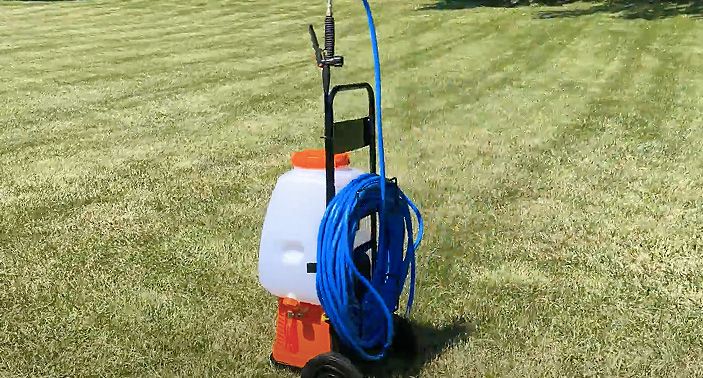

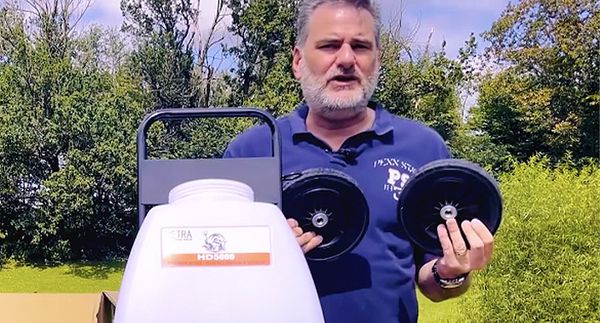

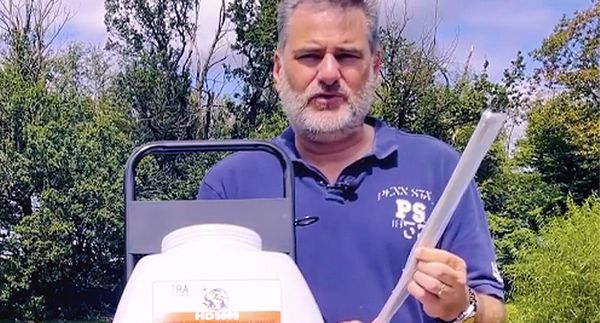

HD5000 Backpack Sprayer and Custom Cart

Check the switches.

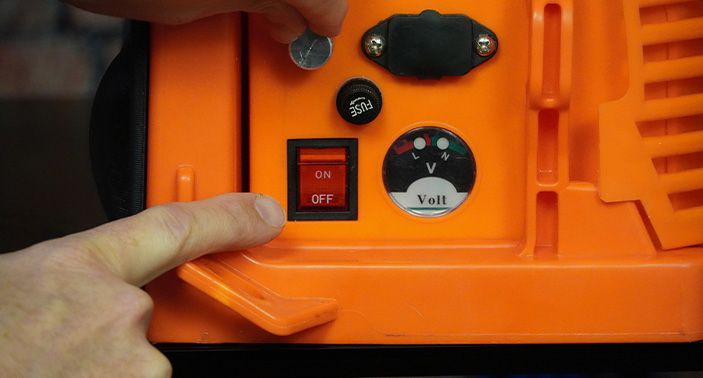

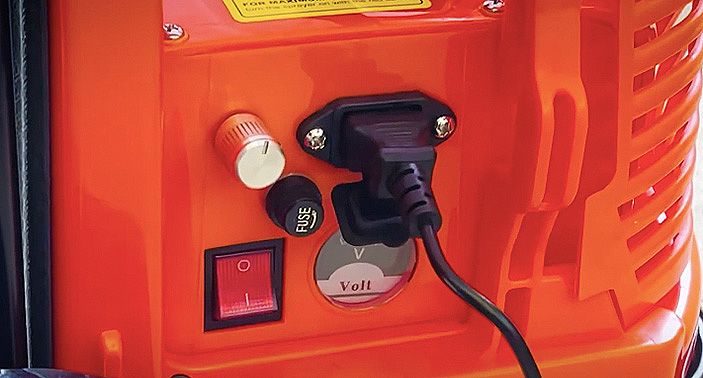

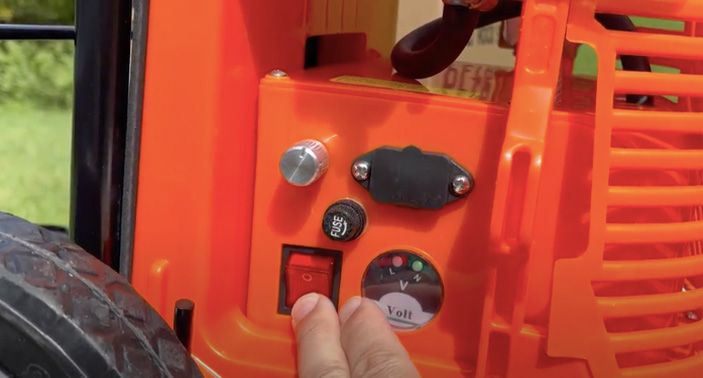

When not in use, make sure that the red rocker switch & the silver pressure knob are turned off. Leaving the switch and adjustment dial turned on, especially when charging, will drain the battery. The silver pressure knob should audibly click when turned counterclockwise all the way.

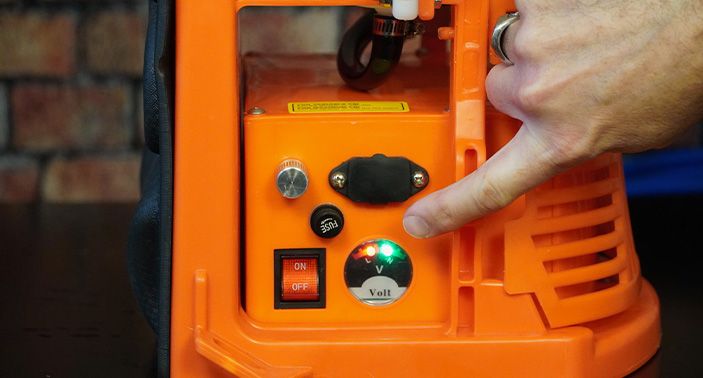

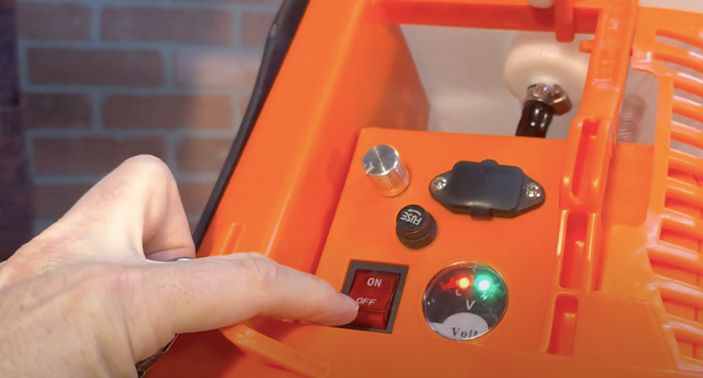

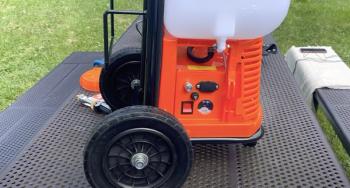

Check if the lights in front of the unit are turning on.

There are two light colors on the front of the unit - green and red. The red light shows that the unit is on and green means that the battery is charged.

Check the fuse.

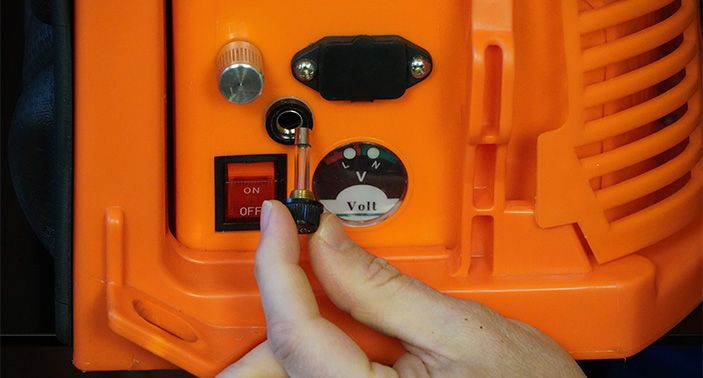

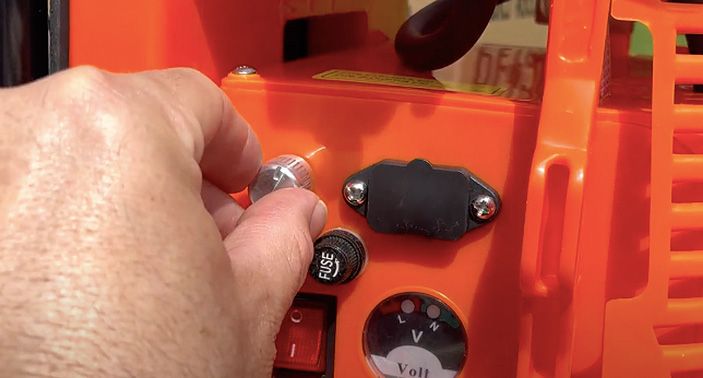

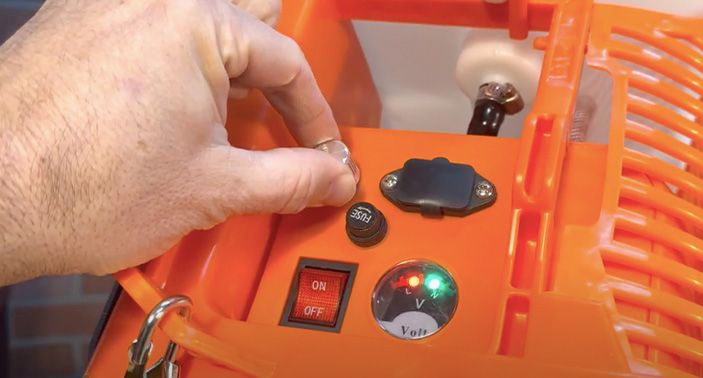

To check the fuse, remove it from the control panel and take a good look at it. The fuse has a filament inside. Make sure that there is no burning inside and that the filament is attached correctly. Replace with the included spare if required.

Check if the battery is charged.

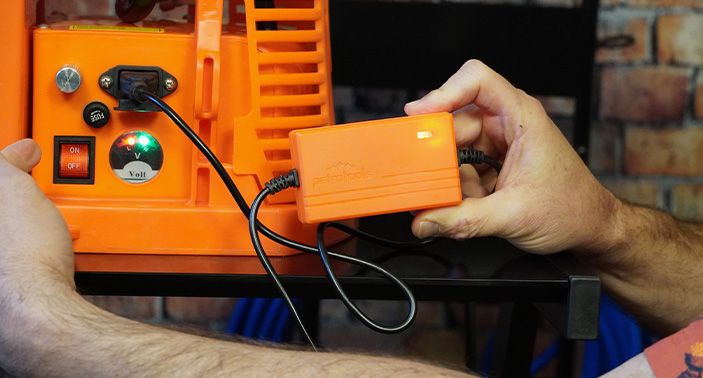

To do this, try plugging the charger into the unit. If the unit is charging, the charger light will turn red. When doing so, make sure that you are plugging the charger into a working outlet.

Bypass the battery.

To know if the battery is working or not, all you have to do is plug the charger into the unit. Then turn it on, bypassing the battery. If it still doesn’t work, then you may need a new battery or pump.

Check the battery terminal connections.

There could be times that the battery terminals aren’t connected to the wires. To determine if this is the case, open the compartment at the back of the unit and take off the velcro strap. Check that both wires are connected properly to the battery & ensure that moisture hasn’t made its way into the compartment.

Access the internal wiring.

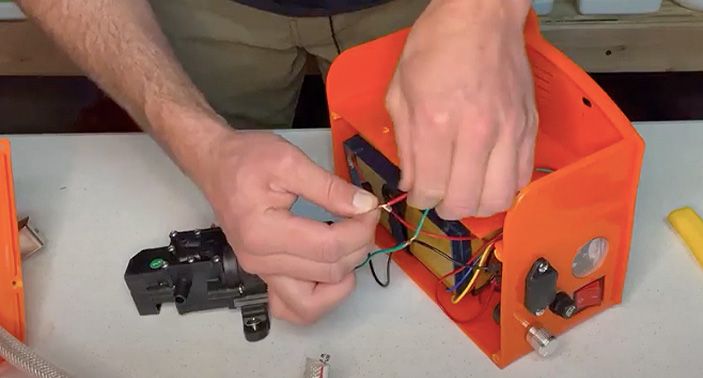

If all of the above doesn’t work, you might want to check the wiring inside the base of the unit. To do this, separate the unit and the tank by removing the Phillips screws from the base, then inspect if the wires are connected properly.

Ensure both the silver pressure knob & the red rocker switch are in the off positions.

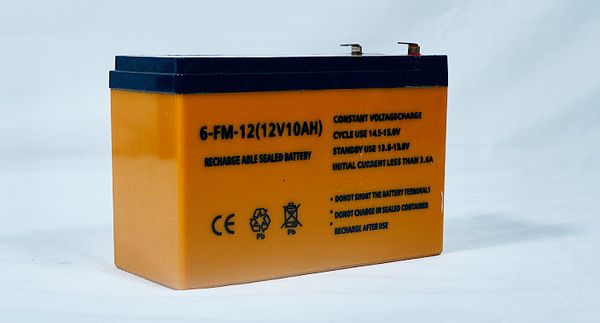

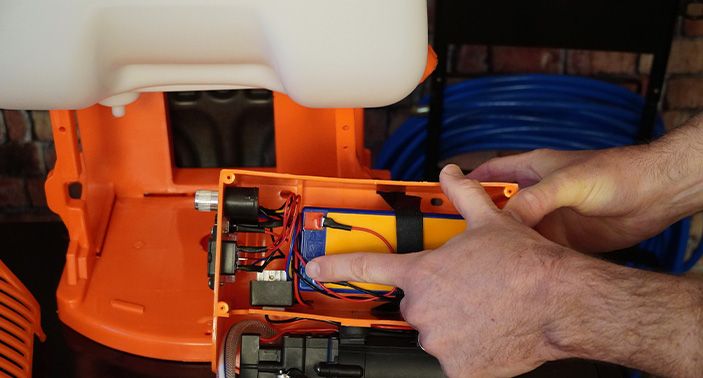

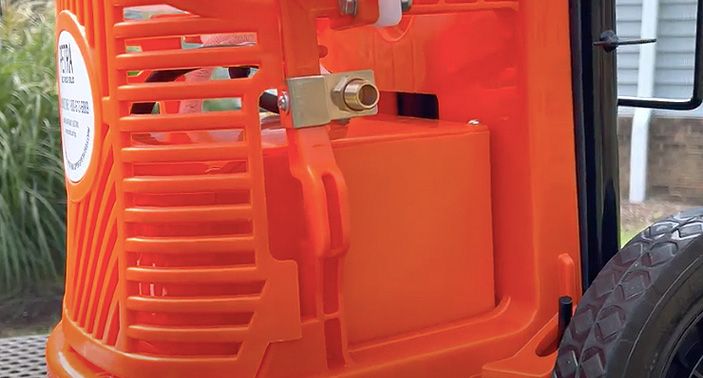

Locate the battery. On the back of the unit you’ll find a small access door. Push the retaining button in to open. The Velcro strap holds the battery in place. Remove it.

Remove the black and red wire connecting the battery to the device. - You'll see that there are two wires connecting the battery to your device. One is black and one is red. Gently remove these.

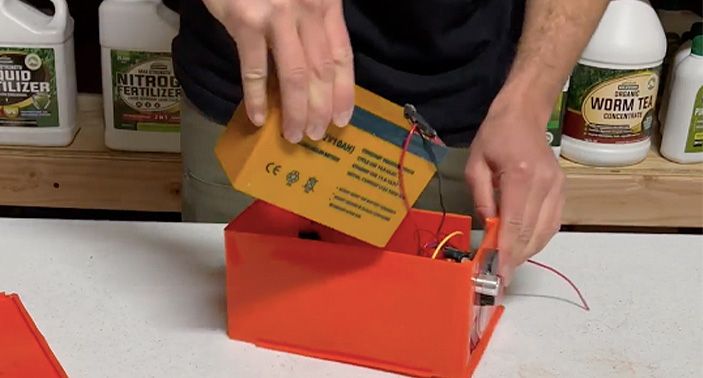

Take out the old battery. - The old battery will now come out easily. Just pull it out of the compartment.

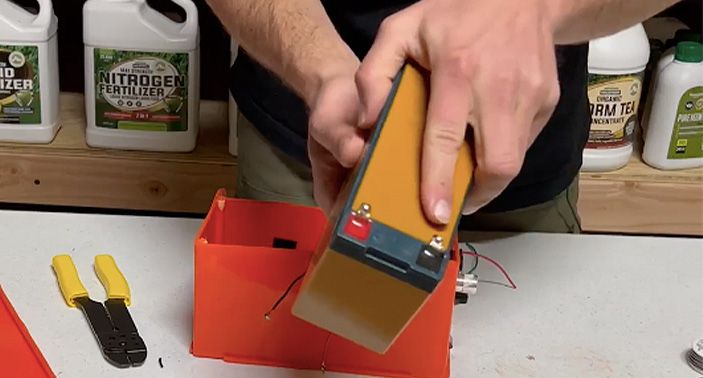

Take your new battery and insert it into the compartment, making sure that the terminals are in the back, closest to the door, with the red terminal on the left.

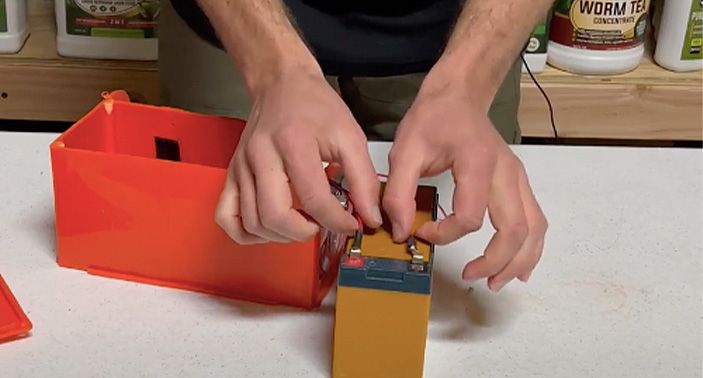

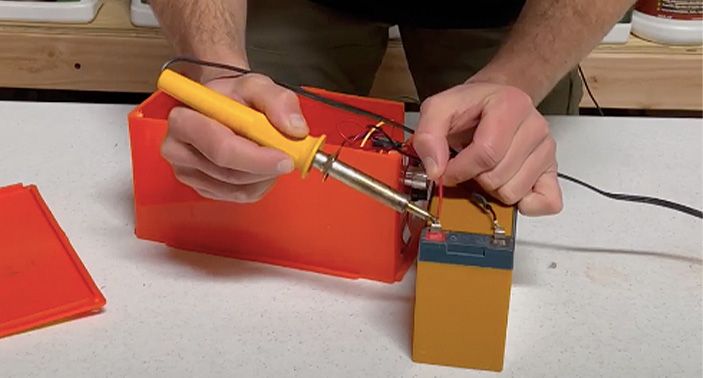

Take the black and red wires and reconnect them to the new battery. Make sure that they're snug and secure.

Close the access door by pushing it in until it clicks.

Disassembly

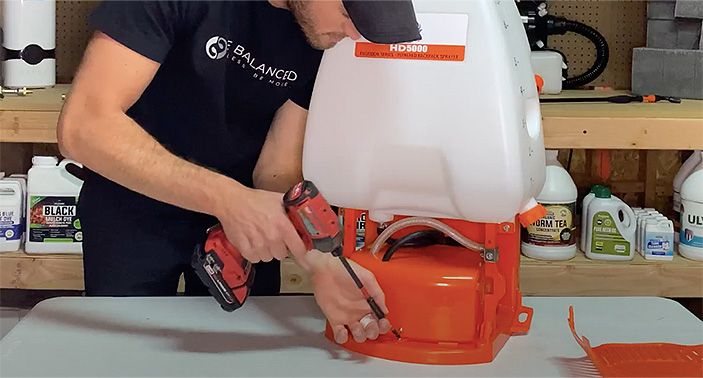

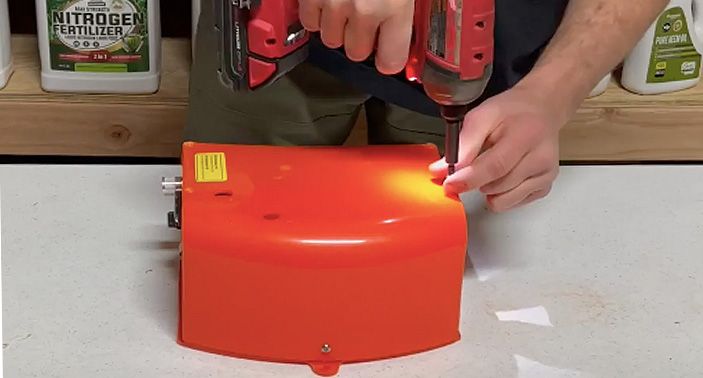

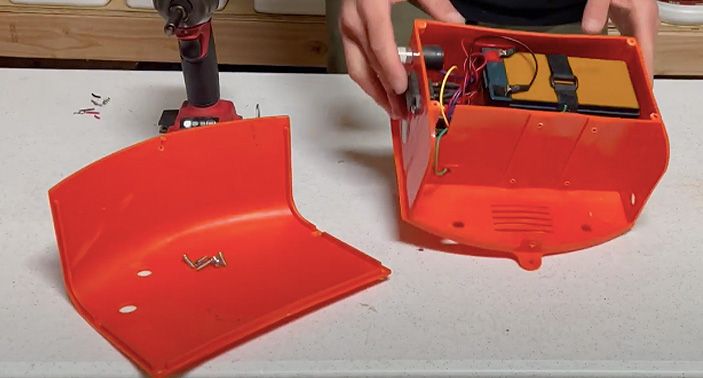

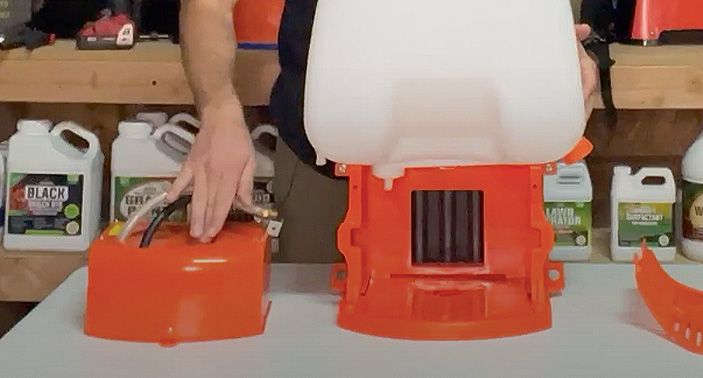

At the bottom of the sprayer, you will see two Phillips screws. Unscrew them using a long screwdriver, as they are recessed approximately 5 inches up into the unit.

Disassembly

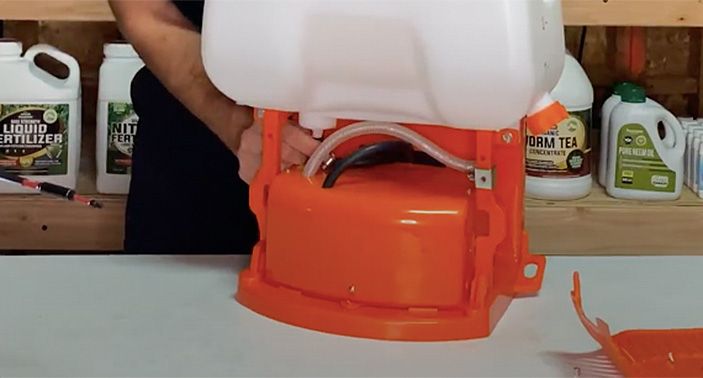

Take those two screws out so you can separate the bottom part of the sprayer from the tank itself. Put them in a safe place!

Pump Replacement

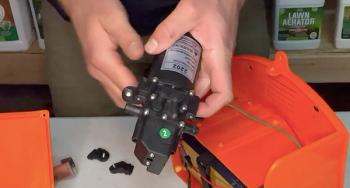

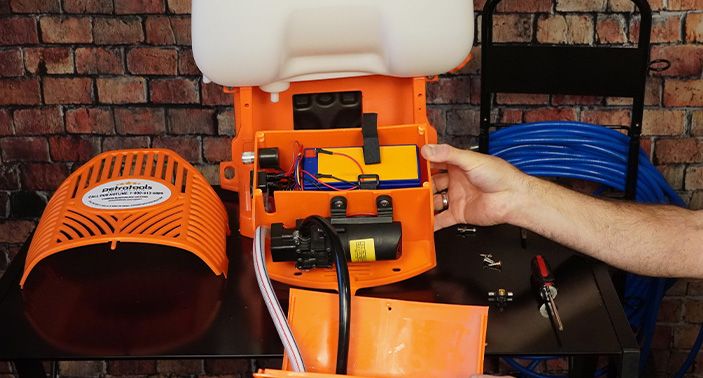

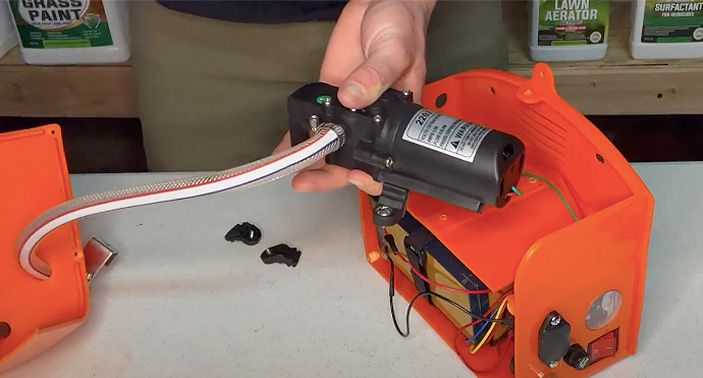

Remove the screws. - Remove the three screws which attach the pump to the unit. Be careful not to damage anything.

Pump Replacement

Take off the hose clamps. - Once the screws are removed, the hoses can be taken off by taking off the small hose clamps that are holding them in place.

Pump Replacement

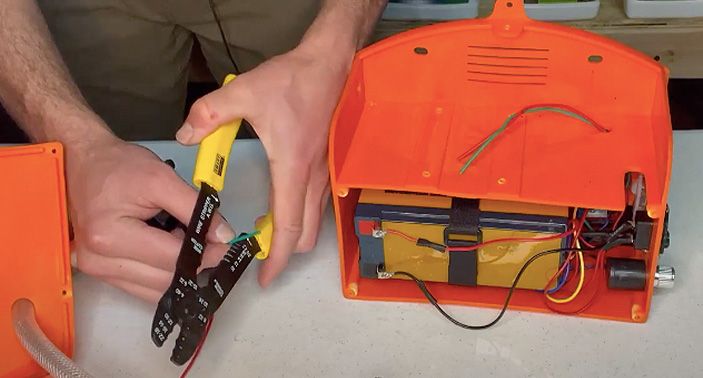

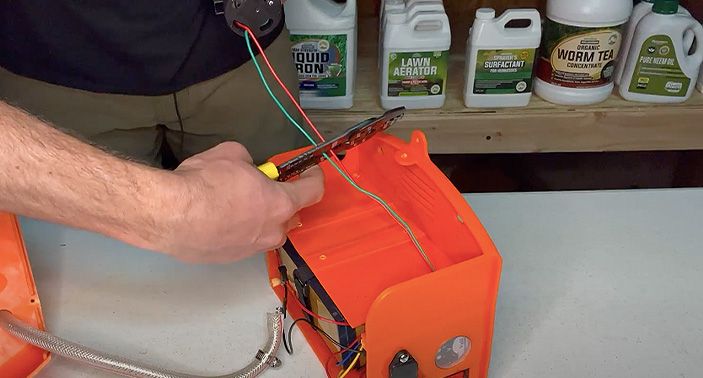

Cut the wires. - Disconnect the wires which are connected to the device. Cut the plastic tie first before doing so. Ideally, leave at least 4-5 inches on the wires. These can be disconnected by gently pulling on them.

Pump Replacement

Strip the wires. - Strip about a half-inch of the plastic casing of the wires so that they can be reconnected more easily.

Pump Replacement

Reconnect the wires. - Reconnect the wires to the device, being careful to not cross any of them. Make sure they're snug and secure.

Pump Replacement

Install the pump. - Install the new pump by screwing it in and attaching the hoses. Be sure to put the hose clamps back on so that they're snug and secure.

Reassembly

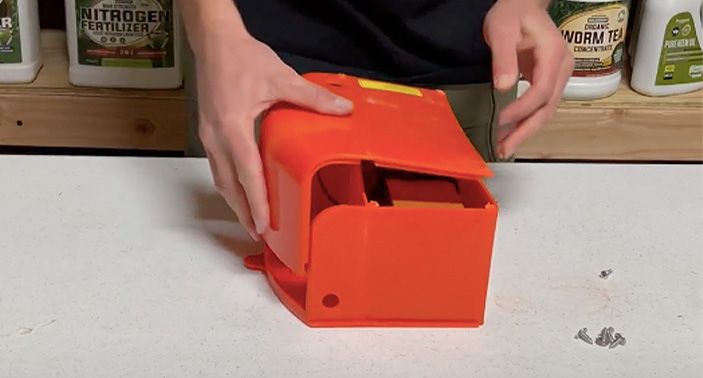

To reassemble your HD5000 Custom Cart, ensure that the screw holes & outer casing parts mate up. You should be able to easily tighten the two screws removed in step 1 above.

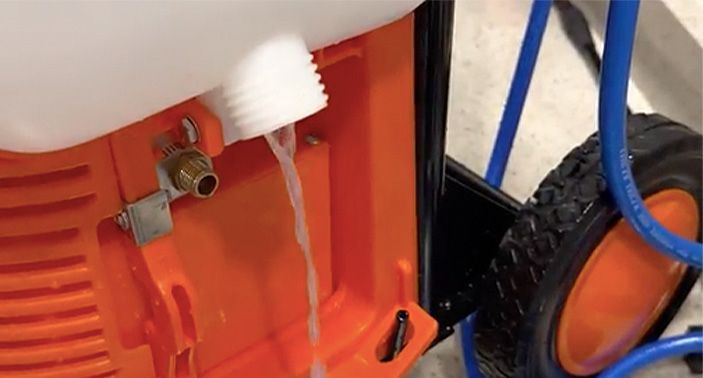

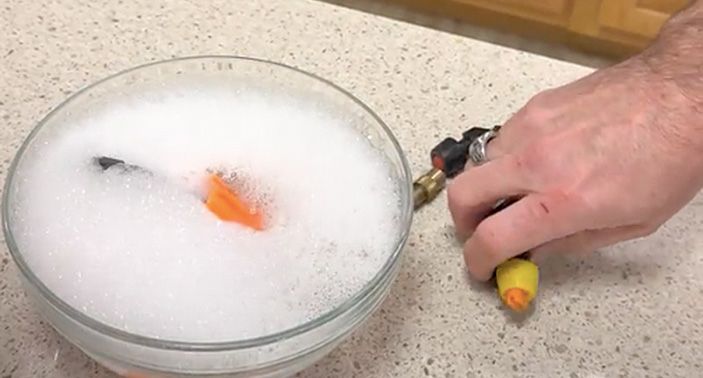

Empty any remaining solution from the tank and rinse it thoroughly with clean water.

Fill the tank with a cleaning solution, such as water and vinegar or soap and water.

Pump the sprayer to circulate the cleaning solution through the hose and nozzle.

Let the cleaning solution sit in the tank, hose, and nozzle for 15-20 minutes.

Rinse the tank, hose, and nozzle with clean water and pump the sprayer to flush out any remaining residue.

Let the sprayer air-dry, and store it in a cool, dry place.

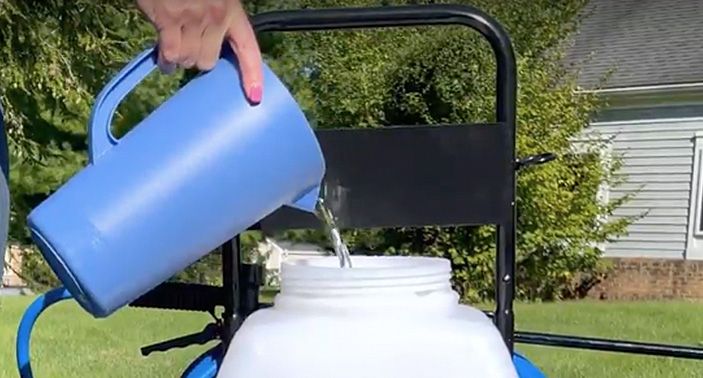

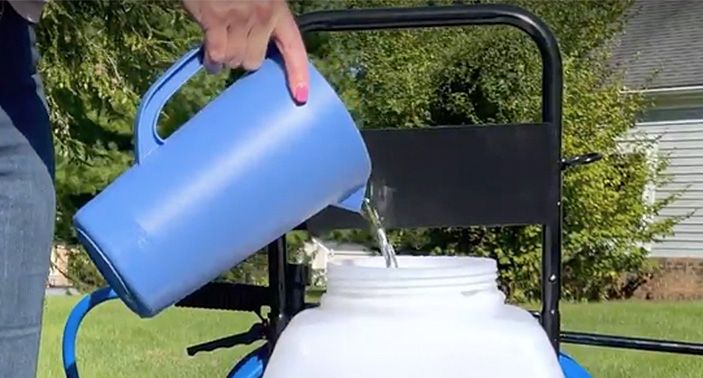

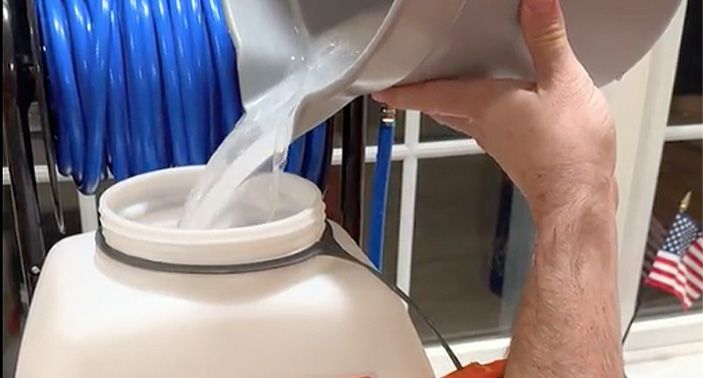

Add 2 gallons of warm soapy water into the tank.

Add 2 gallons of warm tap water to the tank. To this add 2 teaspoons of liquid dish soap. Shake gently to mix.

For optimal performance, we recommend priming the sprayer by running it for no more than 10 minutes. This ensures proper function without putting unnecessary strain on the pump.

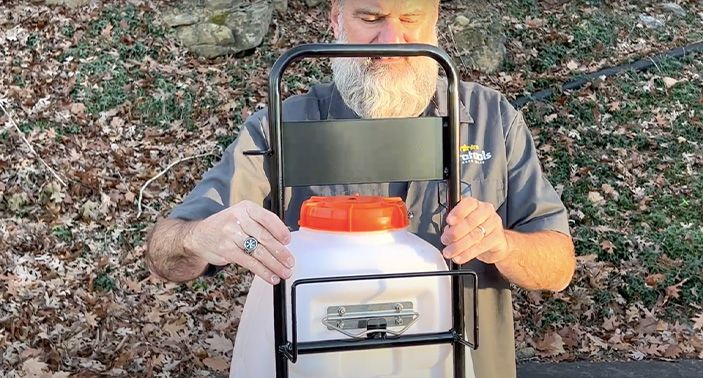

Tighten the lid and turn on the unit

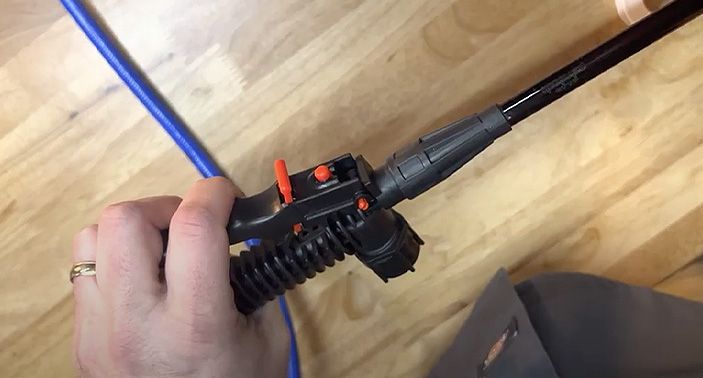

Make sure that you have tightly closed the lid. Flip the red rocker switch to the ON position (O=Off). The pump should engage immediately and build pressure. Squeeze the trigger to spray the solution through the unit. Ordinarily spray begins in just a few seconds, but for the first use or the first use of the season it may take several minutes.

Run 2 gallons of warm water mixed with 2 teaspoons of liquid dish soap through the unit to clean all internal parts, then run 1 more gallon of warm water only through. Spray until the unit, wand & hose are fully empty.

You may plug your HD3000 unit in for constant battery maintenance, or if this is not possible, simply charge fully before storage.

Place the unit right-side-up in the warmest storage possible. Do not store long-term in temps below 32°F.

Storage in its original closed box is ideal, but if that’s not an option, you can cover it with a canvas or plastic tarp to protect it.
