HD5000 with Reel Cart
Table of Contents
What’s in the box?

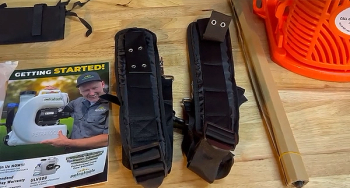

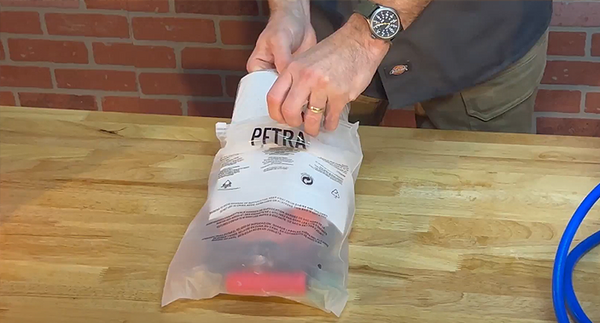

Accessories Bag

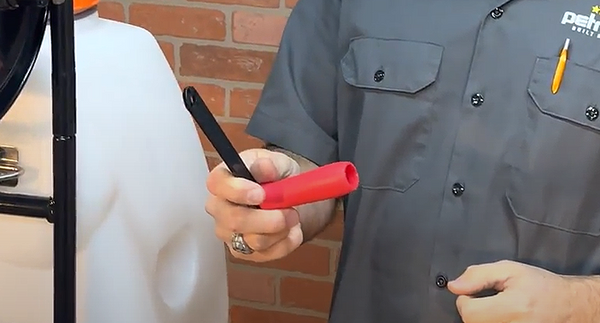

Reel handle

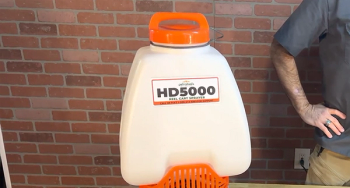

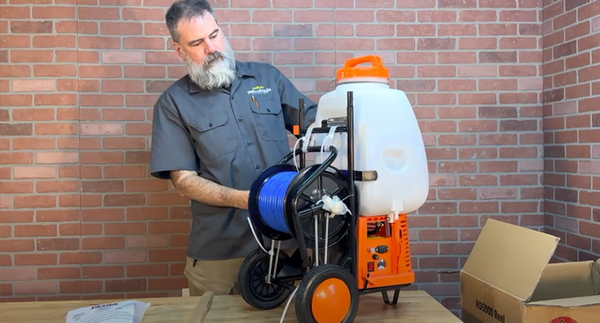

Unit Pre assembled

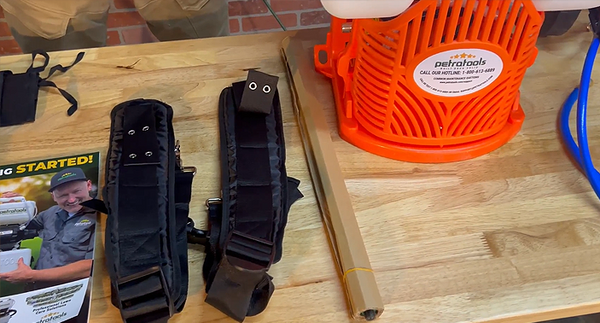

Wand in cardboard sheath

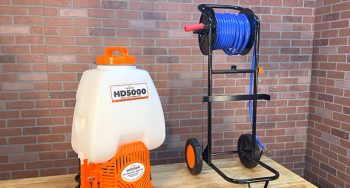

What are the parts of the HD5000 WITH REEL CART?
The HD5000 with Reel Cart has a variety of high-quality parts that combine to make a solid and sturdy spraying tool.
Tank
A 6.5 gallon tank sprayer custom molded to lock perfectly into the commercial-grade cart.
High Pressure 100-Foot Hose
A long backpack sprayer hose to easily cover large areas without the need to move your sprayer. Includes an additional 4-foot hose, and 5 swappable nozzles for all your jobs, from lawn care to misting delicate plants
Nozzle
PetraFlow Nozzles are a set of high-quality nozzles that are designed to provide a wide range of coverage and deliver a consistent spray pattern.
Ergonomic Straps
The adjustable padded side strap provides easy carrying and an ergonomic handle

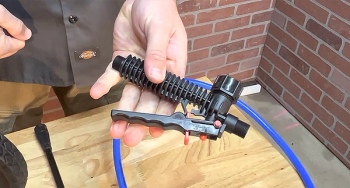

Valve Handle
The mechanism that activates the pump and starts the spray. It’s sturdy and lightweight.
Custom Fitted Cart
A steel frame with large flat-free tires for easy transportation, and an extended hose rack and a built-in wand holder.
Long-Lasting Rechargeable Battery
The 12 AH lead-acid battery provides 4X the battery life of most lithium battery sprayers and is easily swappable for all-day use.
How to use the HD5000 with Reel Cart
Learn how to effortlessly operate the HD5000 with Reel Cart with our easy-to-follow user guide.

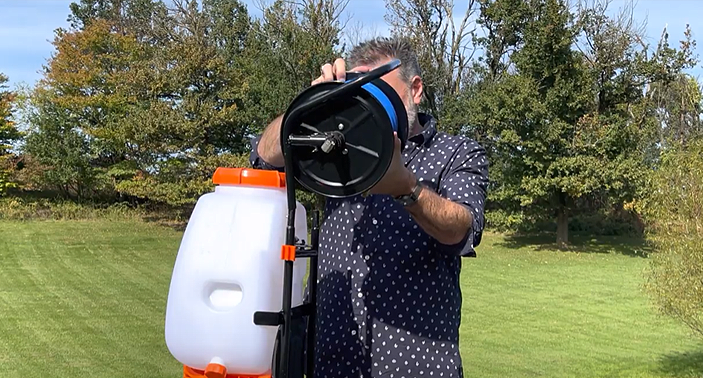

Step 1
Attach the reel to the cart by sliding it easily into place.

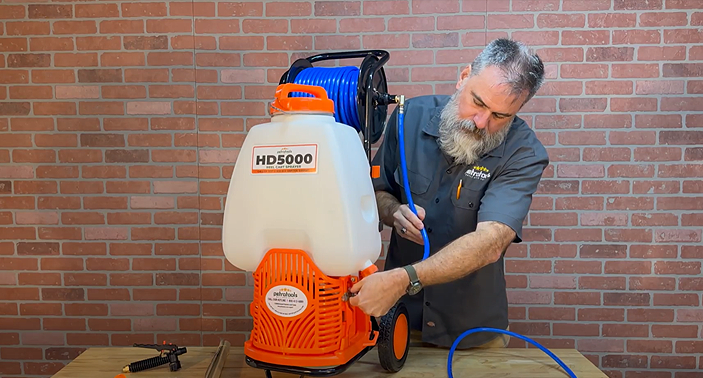

Step 2
Attach the 2-ft hose to the reel and the other end to the bottom of the tank. Use the provided Teflon tape to prevent leaks.

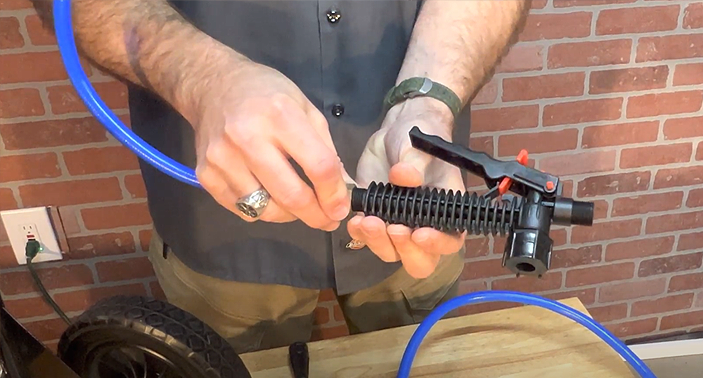

Step 3
Attach the 100-ft hose to the bottom of the valve handle.

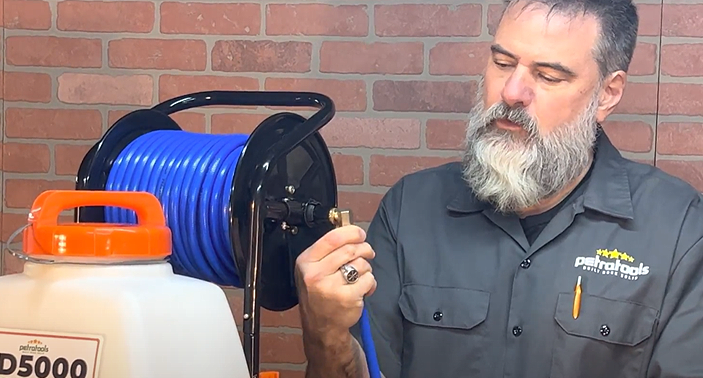

Step 4
Attach the wand to the valve handle.

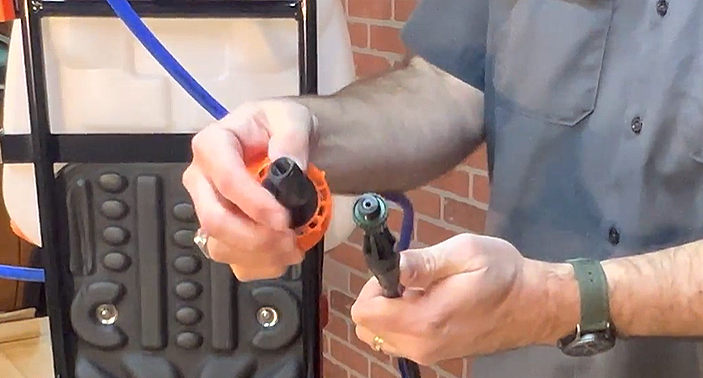

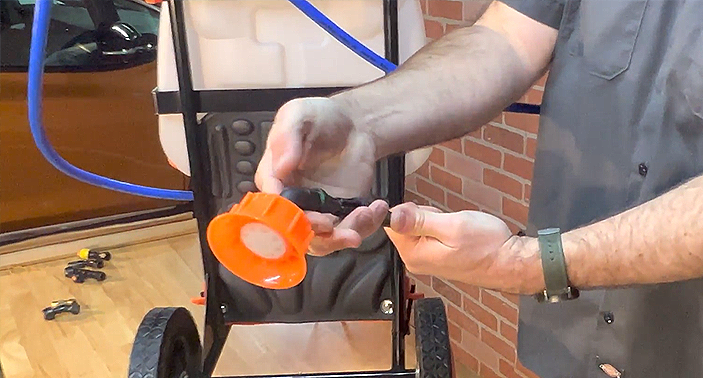

Step 5
Attach the nozzle of your choice.

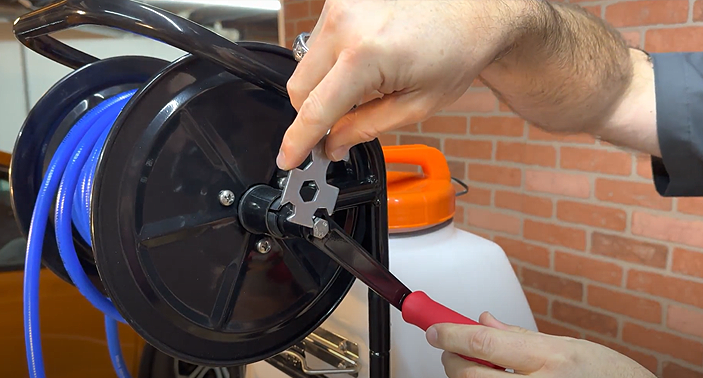

Step 6

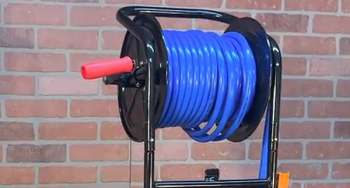

Attach the reel handle on the other end of the reel.

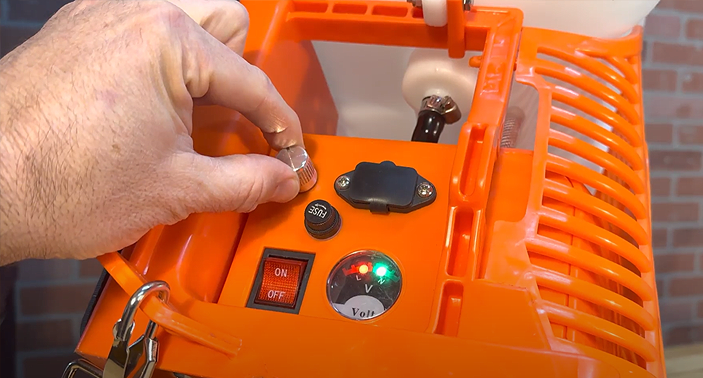

Step 7

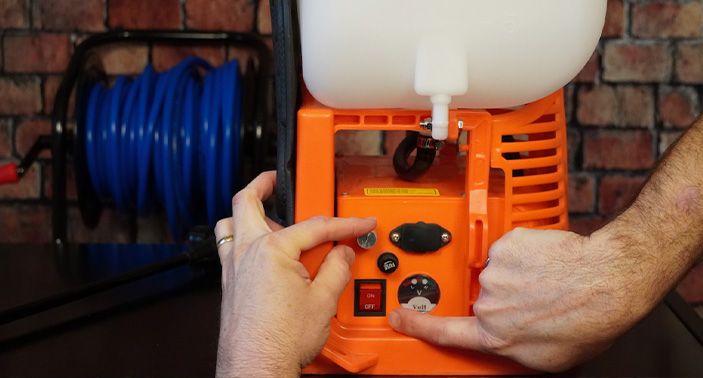

Turn on your sprayer using the red power switch or by using the silver pressure adjuster while the red switch is OFF.

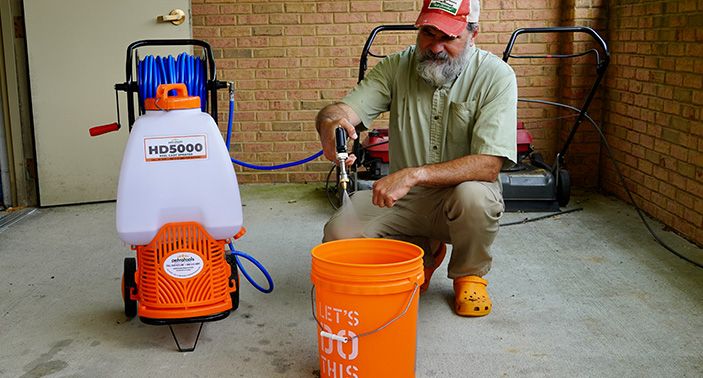

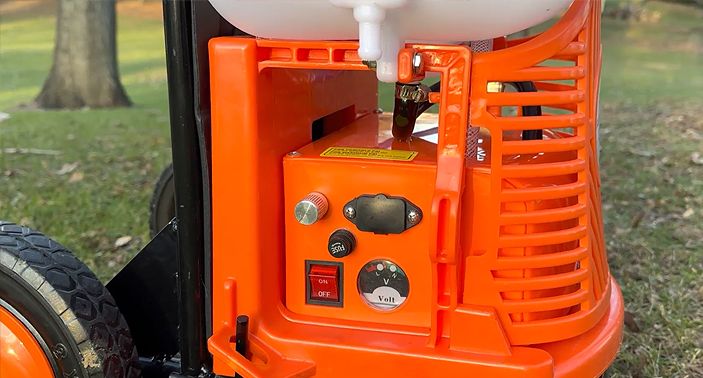

Step 8
After spraying, turn both the red switch and the silver adjuster OFF to preserve battery life.

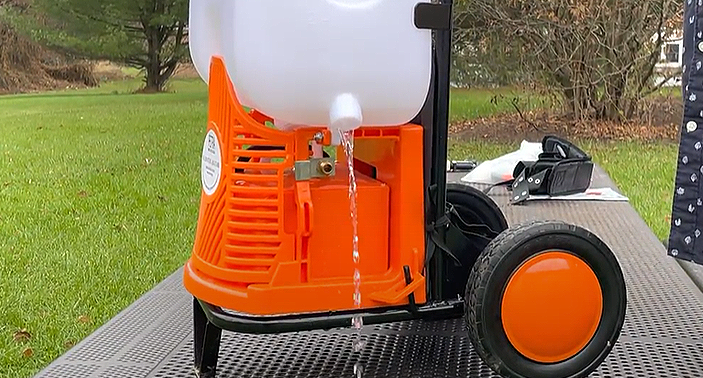

Step 9
Empty any remaining solution and flush it with clean water.
Step 10
Store the sprayer in a cool, dry place.
Troubleshooting your HD5000 WITH REEL CART Battery-Powered Sprayer
Don't let a malfunctioning sprayer keep you from your lawn and gardening chores - use our troubleshooting guide to fix common problems with the HD5000 with Reel Cart.

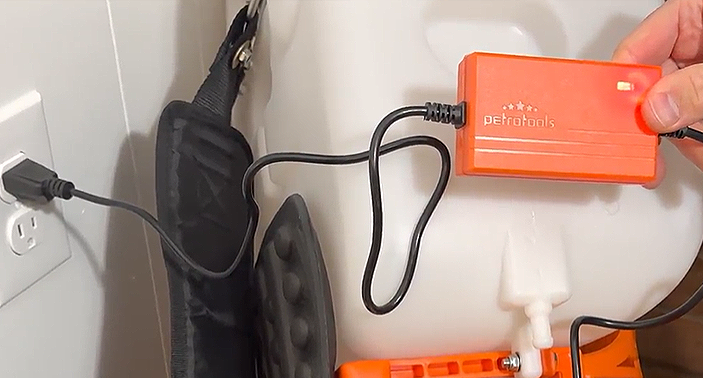

Step 1
Check your tank
To do this, try plugging the charger into the unit. If the unit is charging, the charger light will turn red. When doing so, make sure that you are plugging the charger into a working outlet.
Step 2

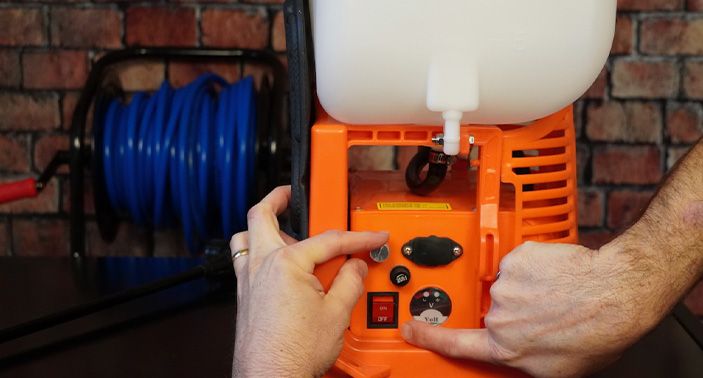

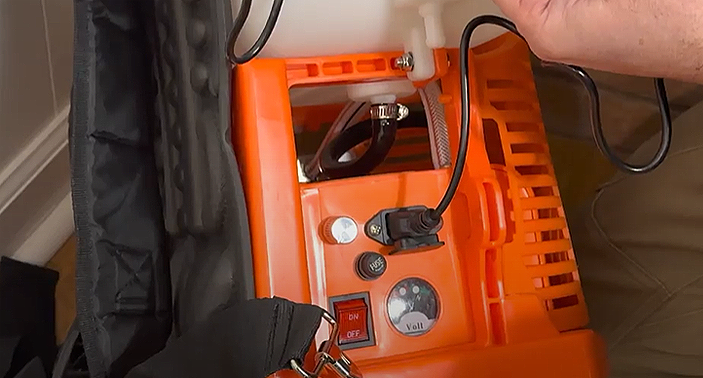

Check Your Battery
Plug the charger firmly into the battery charger port on the base of the unit, then plug into a 110v outlet. Your battery will last many years but may need to be replaced eventually.
Step 3
Inspect the Nozzle
If the spray is not coming out of the nozzle or the spray pattern is not as expected, inspect the nozzle for blockages or damage. Unscrew the nozzle and clean it thoroughly with water to remove any dirt or debris. If the nozzle is damaged, replace it with a new one.
Step 4
Check for Leaks
Check all connections to ensure they are tight and not leaking. Replace any damaged or worn parts as needed.
Step 5
Check the Spray Solution
Make sure the spray solution is mixed properly and not too thick. Adjust the mixture as needed to ensure proper flow and spray pattern.
How To Change your Sprayer Battery
Your HD5000 with Reel Cart lead-acid battery uses tried-and-true technology that will give you many years of safe use. With repeated use, you may notice that your battery loses its ability to hold a charge or provides only enough power for short-term jobs. You can purchase brand-new batteries from PetraTools’ website. Here's how to remove & replace an existing battery:
Step 1
Make sure the sprayer is turned off and disconnected from any power source before proceeding.

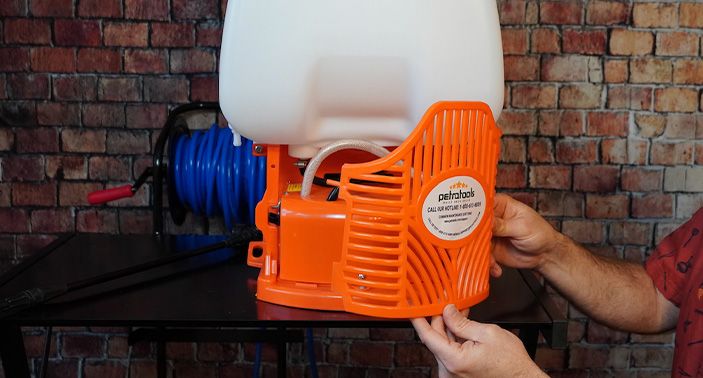

Step 2
Locate the Toolbox where the battery is located.
Step 3
Open the battery compartment cover and carefully remove the old battery.
Step 4
Disconnect the battery cables from the old battery. Make sure to take note of which cable is connected to the positive and negative terminals.

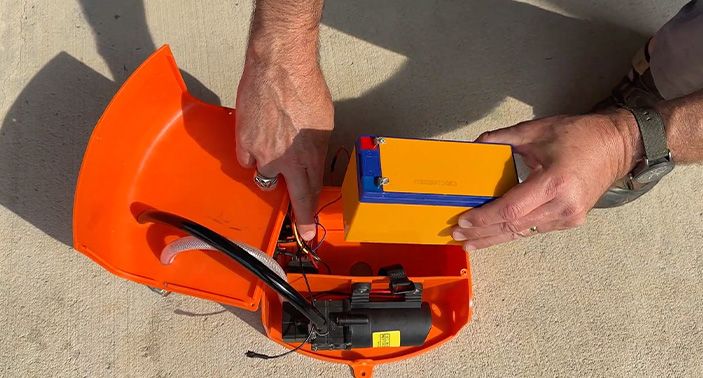

Step 5
Insert the new battery into the battery compartment. Make sure it is properly seated and secure.

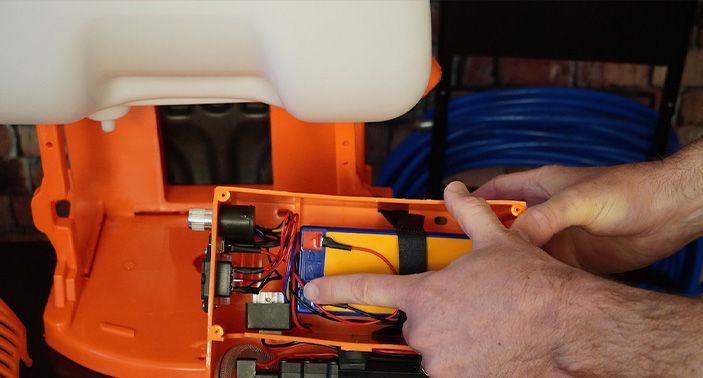

Step 6
Connect the battery cables to the new battery, ensuring that the positive cable is connected to the positive terminal and the negative cable is connected to the negative terminal.
Step 7
Close the battery compartment cover and ensure it is properly secured.
Step 8
Turn on the sprayer and check if the new battery is working correctly. If not, double-check the connections and battery placement.

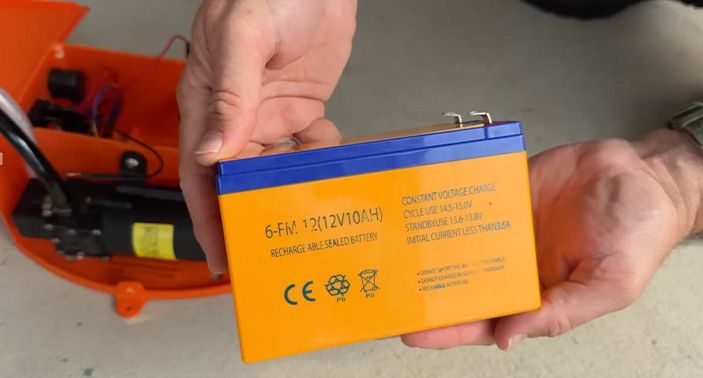

Step 9
Dispose of the old battery in accordance with local regulations.
Note: It's important to use the recommended replacement battery for the PetraTools HD5000 with Reel Cart Sprayer to ensure optimal performance and safety.
How To Clean your Sprayer
Maintaining a clean HD5000 with Reel Cart will keep it in good working order. Here's how:
Step 1
Empty any remaining solution from the tank and rinse it thoroughly with clean water.

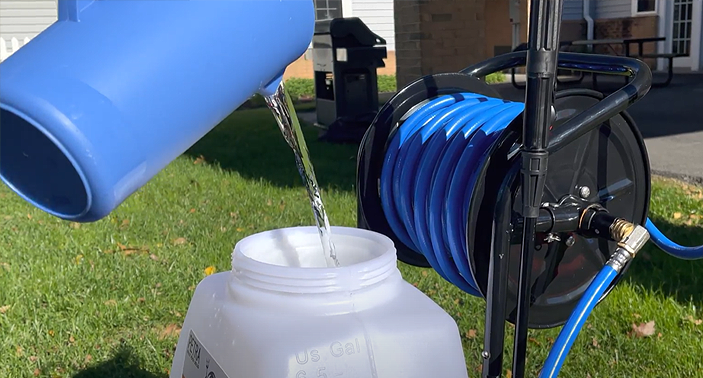

Step 2
Fill the tank with a cleaning solution, such as water and vinegar or soap and water.
Step 3
Pump the sprayer to circulate the cleaning solution through the hose and nozzle.
Step 4
Let the cleaning solution sit in the tank, hose, and nozzle for 15-20 minutes.

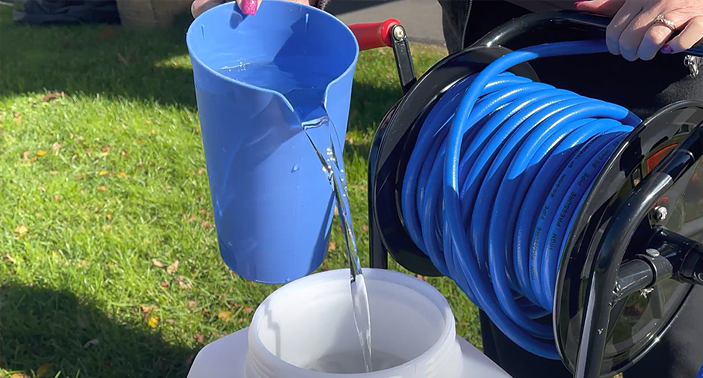

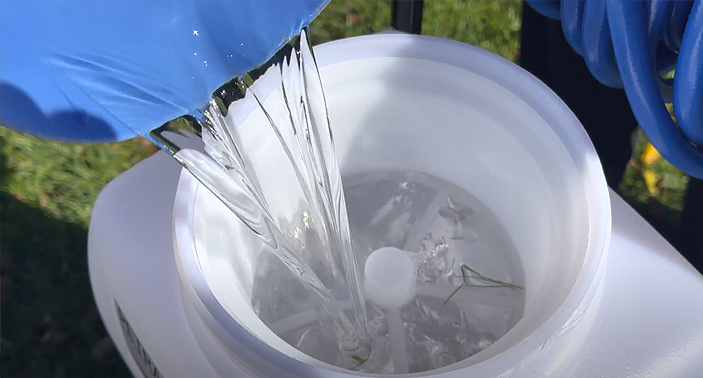

Step 5
Rinse the tank, hose, and nozzle with clean water and pump the sprayer to flush out any remaining residue.
Step 6
Let the sprayer air-dry, and store it in a cool, dry place.
How To Prime the Pump
Priming your HD5000 with Reel Cart is quite easy. Just follow these two steps:

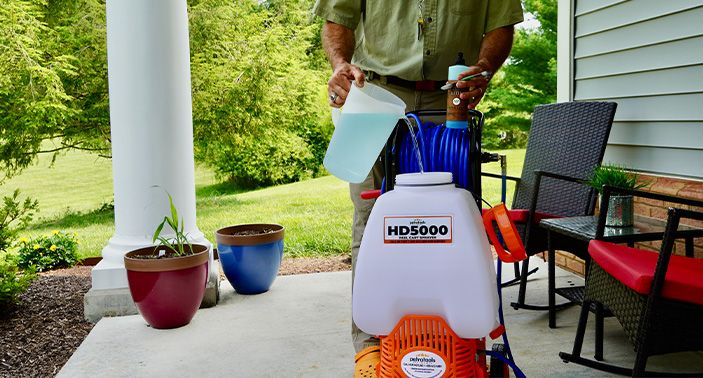

Step 1
Add 2 gallons of warm soapy water into the tank
Make sure that you use warm water and that you are adding the right amount of soap. Ideally, you should add around 1-2 teaspoons of liquid soap.
For optimal performance, we recommend priming the sprayer by running it for no more than 10 minutes. This ensures proper function without putting unnecessary strain on the pump.

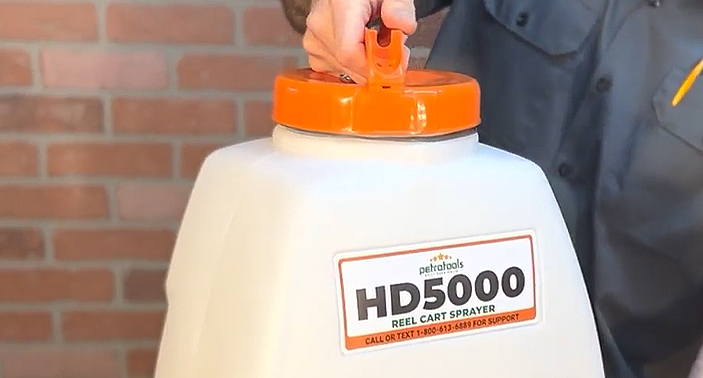

Step 2
Close the lid and turn on the unit
Make sure that you have tightly closed the lid. Depending on what's causing the issue, you could have flow coming out of your hose within a few seconds to a few minutes.

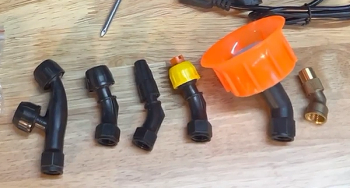

Nozzle Support Guide
Every HD5000 with Reel Cart comes with six versatile nozzles to help you tackle your toughest spraying jobs. Here’s what each of your new HD5000 with Reel Cart nozzles can do:
Angled Black Nozzle (Single plastic Nozzle)
Will give you a fine mist when tightened up and a single stream that goes up to 15-20 ft when loosened.
Orange Cone Nozzle
Volume nozzle that lets a significant amount of solution out.
Double Head Nozzle
Double Head mist nozzle that lets you cover a large area with a medium/fine mist.
Single Head Nozzle
Single Head nozzle for a very fine mist
Single Yellow Head (Flat-tip) Nozzle
Single Head nozzle for a flat fan spray.
Brass Nozzle
From fine mist to long distance spray. Not advisable to be used with acid and bleach solution.
Battery
The battery on your HD5000 with Reel Cart is designed to provide up to 6-8 hours of continuous spray time on a single charge. To ensure the longest battery life possible, make sure to fully charge the battery after each use and store it in a cool, dry place.
6-8 hours of continuous spray

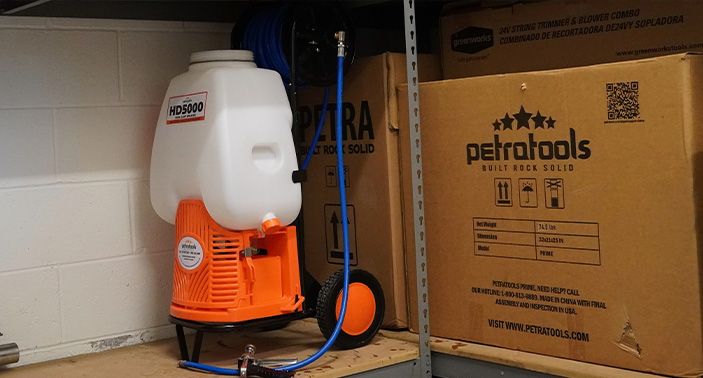

How To Prepare your Sprayer for Winter Storage
Before you put your sprayer away for the winter, there are a few things you should do to make sure it’s in good shape for next season.
Step 1
Run 2 gallons of warm water mixed with 2 teaspoons of liquid dish soap through the unit to clean all internal parts, then run 1 more gallon of warm water only through. Spray until the unit, wand & hose are fully empty.
Step 2
You may plug your HD5000 with Reel Cart unit in for constant battery maintenance, or if this is not possible, simply charge fully before storage.
Step 3
Place the unit right-side-up in the warmest storage possible. Do not store long-term in temps below 32°F.
Step 4
Place the unit right-side-up in the warmest storage possible. Do not store long-term in temps below 32°F.
